HVAC Services

Split System Heat Pump Services in Tucson, AZ

Maximize comfort & save energy with Heat Pump Split Systems. Ductless design for individual room control. Expert installation by Done Rite Services. Get a quote!

Request Your Free Estimate

300+
5-Star Reviews
24 / 7
Emergency Repairs
Free
Estimates
Licensed
Insured & Bonded
Heat Pump Split Systems Outdoor heat pump condensing unit installed on a pad beside a Tucson home

Tucson Heat Pump Split Systems

A split system heat pump handles both heating and cooling from one piece of equipment, moving heat rather than burning fuel to create it. In Tucson’s climate that makes it one of the most efficient systems you can fit.

Done Rite Services sizes, installs, repairs and maintains ducted and ductless split system heat pumps across Tucson. Every installation is load calculated and performance tested before we hand it over.

Simple From Start To Finish

How to Get a Heat Pump Split Systems Estimate

01

Call or Book Online

Reach our Tucson team any time, day or night. We answer fast and get you on the schedule, often same-day.

02

Upfront, Honest Estimate

A skilled tech diagnoses the issue and explains your options with clear, fair pricing. No surprises, no pressure.

03

Done Rite, Guaranteed

We complete the work with quality parts and clean up after ourselves. Backed by our satisfaction guarantee.

Get My Free Estimate
Outdoor Condensing UnitOutdoor heat pump condensing unit set level on a concrete pad

How a Split System Heat Pump Works

A split system heat pump moves heat rather than making it. In summer it pulls heat out of the house and dumps it outside, which is exactly what an air conditioner does. In winter it runs the same cycle backwards, pulling heat out of the outside air and bringing it in.

Because it transfers heat instead of burning fuel to create it, a heat pump delivers more heating energy than the electrical energy it consumes. That is the whole reason the technology suits Arizona.

Line Set ConnectionsRefrigerant line sets connected at a rooftop heat pump condenser

Why Split System Heat Pumps Suit Tucson

Heat pumps lose efficiency as outdoor temperatures approach freezing. Tucson rarely gets there, so the system spends nearly the whole winter operating in the range where it performs best.

The long cooling season matters just as much. A heat pump is your air conditioner for most of the year, so the equipment earns its cost through the summer and then covers the winter as well.

Indoor Air HandlerTechnician servicing a wall-mounted indoor mini split head with the front cover lifted

Ducted and Ductless Split System Heat Pumps

A ducted split system uses an indoor air handler feeding the ductwork you already have, which suits most Tucson homes and gives even whole-house temperatures from one system.

A ductless mini split skips the ductwork entirely, running individual indoor heads off one outdoor unit. That is the better answer for additions, converted garages, casitas, and older houses that never had ducts to begin with.

Tucson's Multi-Trade Team

Big Enough To Handle It. Local Enough To Care.

4

Trades Under One Roof

HVAC · Plumbing · Electrical · Remodel

24/7

Emergency Service

On call 365 days a year

300+

5-Star Reviews

Across Google, Yelp & Angi

100%

Satisfaction Guaranteed

Done right, the first time

Why Heat Pump Split Systems

What a Split System Heat Pump Gets You

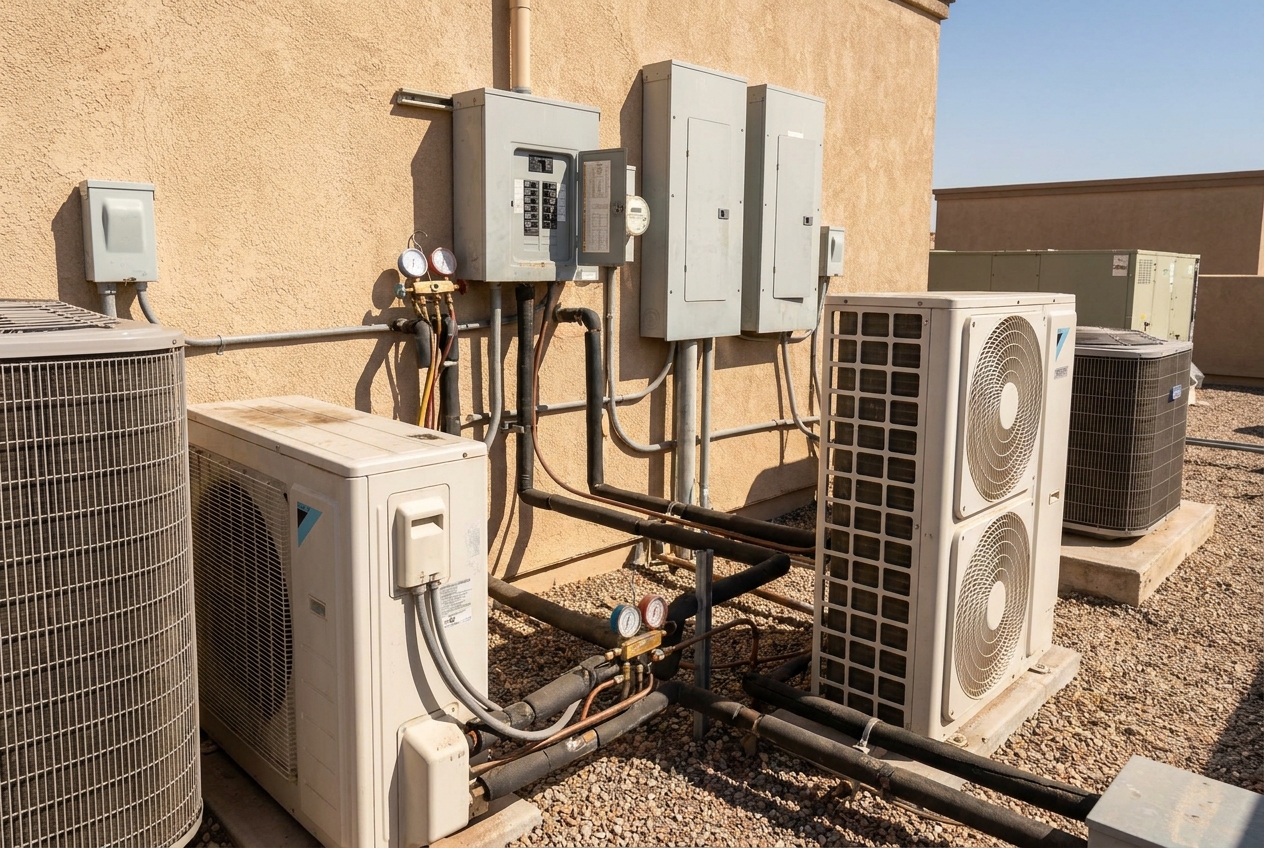

  • Bank of mini split condensers with electrical panels and refrigerant gauges

    Lower Running Costs Year-Round

    Moving heat takes far less electricity than generating it. Inverter-driven compressors add to that by matching output to demand rather than switching fully on and off, which is where the summer bill savings come from.

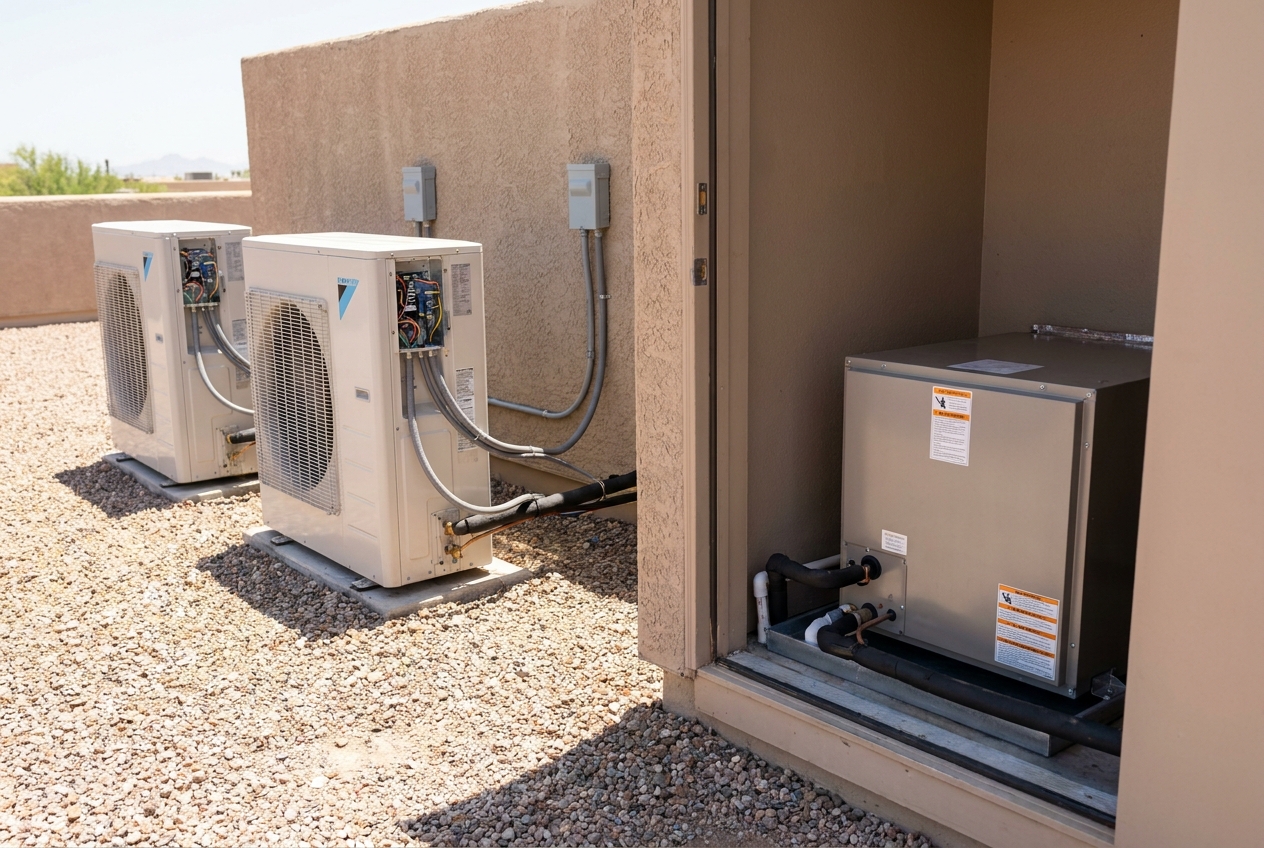

  • Two all-electric heat pump condensers outside with the air handler in a wall alcove

    One System for Heating and Cooling

    A heat pump replaces both the furnace and the air conditioner. One piece of outdoor equipment to maintain, one system to service, and no gas connection needed at all.

    That matters in the newer Tucson neighborhoods built without natural gas infrastructure.

  • Inverter mini split outdoor unit mounted on a pad against a stucco wall below a window

    Quieter Operation

    Modern split system heat pumps run considerably quieter than the equipment they replace, thanks to insulated compressor compartments and variable-speed fans that rarely need to run flat out.

Our Process

How We Handle Your Split System Heat Pump

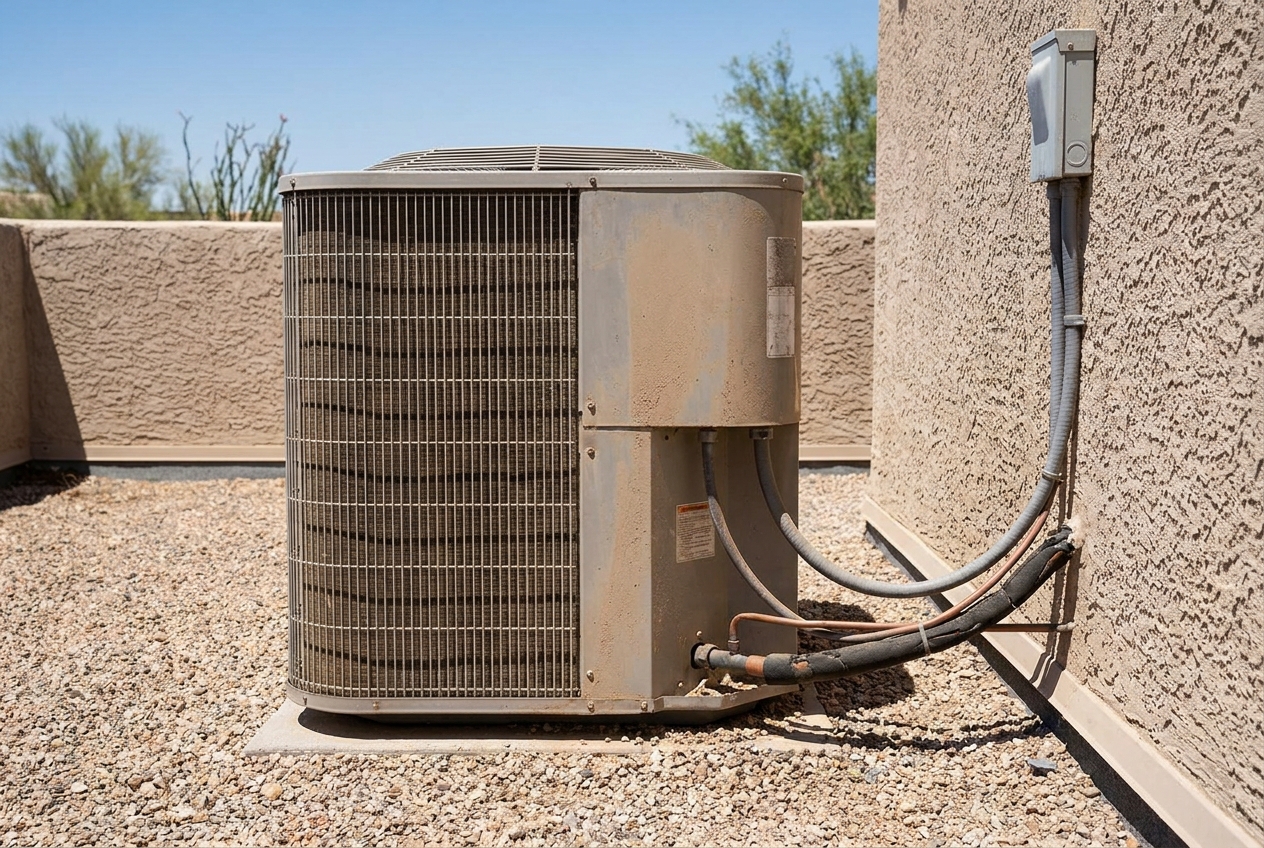

Load CalculationOutdoor heat pump condenser with its line set and electrical disconnect at the wall
Step 01

Sizing and System Selection

We measure the house and calculate the real heating and cooling load rather than matching whatever was fitted before. Insulation, window orientation and duct condition all feed into it.

You get told what capacity the house needs and why, along with anything about the existing ductwork that would undermine a new system.

Equipment SetTechnician holding an indoor mini split head level against the wall while setting it
Step 02

Installing Your Split System Heat Pump

The outdoor unit is set level with clearance for airflow and future service. Indoors, the air handler and coil are matched to the condenser, the line set is brazed and pressure tested, and the electrical is landed to code.

Ductless heads are mounted and levelled so condensate drains the way it should rather than finding its own way out.

Performance TestingTechnician reading a digital refrigerant manifold beside an outdoor unit
Step 03

Commissioning and Testing

With the system running we verify refrigerant charge against the manufacturer's target, measure airflow and the temperature split across the coil, and confirm the reversing valve switches properly between heating and cooling.

You get the readings and a walkthrough of the filter schedule before we leave.

What's Covered

Heat Pump Split Systems Details

Outdoor unit on a concrete pad with gauges connected at the service valves and the disconnect cover off

Split System Heat Pump Sizing

An undersized heat pump runs constantly without reaching temperature. An oversized one short cycles, wears out early and leaves the air damp. Sizing comes from a load calculation on the actual house.

Typical residential capacities, with the load calculation deciding rather than square footage alone:

  • 1.5 ton: Small single-family homes, condos and casitas.
  • 2 ton: Medium homes, or open floor plans of a similar size.
  • 2.5 ton: Larger single-family homes with moderate insulation.
  • 3 ton: Spacious homes with multiple rooms or partially open layouts.
  • 4 ton: Very large homes, or properties with high ceilings and extensive square footage.
  • 5 ton: Oversized homes and light commercial spaces with multiple zones.
Flexible Options Outdoor heat pump condensing unit installed on a pad beside a Tucson home
$0Down Financing
Financing Available

Comfort Now, Pay Over Time

Heat Pump Split Systems shouldn't wait for the perfect month. With flexible financing through our lending partners, you can get the work done today and spread the cost into manageable monthly payments.

  • Quick, easy online application
  • Flexible monthly payment plans
  • Special offers on qualifying installs
  • No impact to apply
Why Done Rite

Why Tucson Calls Done Rite Services for Heat Pump Split Systems

Satisfaction Guaranteed

We are dedicated to providing great service, excellent workmanship, and quality products to keep our customers happy.

Multi-Licensed Contractor

Fully licensed in HVAC, plumbing, electrical, and remodeling.

Licensed, Bonded & Insured

You can trust Done Rite Services of Tucson to be the best HVAC, Plumbing & Electrical provider for repair or installation!

Top Rated

Loved on Yelp, Google, NextDoor, and Angi across Southern Arizona.

Customer Testimonials

Tucson Trusts Done Rite

“After numerous quotes and inspections, I decided to contract with Done Rite for a new HVAC system on my 114 year old house, which never had a central air conditioning system, only evaporative cooling. I was a bit nervous about drilling holes through plaster and lath ceilings to accommodate new vents and returns. From start to finish, these guys were amazing! This was not a cookie cutter project and they handled it with ease. Big shout out to Marcos and Brandon, etc., and to Jordan for taking the time to explain and suggest a superb system for my home.”
D
Debra M.Verified Google Review
Verified
Questions, Answered

Frequently Asked Questions

What is a split system heat pump?

A split system heat pump has an outdoor unit containing the compressor and condenser, and an indoor air handler with the evaporator coil. It moves heat between inside and outside rather than burning fuel, so the same equipment cools in summer and heats in winter.

Do heat pumps actually work in Arizona winters?

They work particularly well here. Heat pumps lose efficiency as temperatures approach freezing, and Tucson rarely gets there, so the system spends nearly the whole winter in the range where it performs best.

Should I choose a ducted or a ductless heat pump?

If your home already has good ductwork, a ducted split system is usually the better value and gives even whole-house temperatures. A ductless mini split makes more sense for additions, casitas, converted garages, and older homes with no ductwork at all.

How much does a split system heat pump cost to install?

It depends on the capacity, the efficiency rating, and what the installation involves, including any ductwork repairs or electrical upgrades. We quote after seeing the house, and the quoted price is the price.

What size heat pump does my home need?

That comes from a load calculation, not from square footage alone. We measure the conditioned area and account for insulation, window orientation and duct condition. An undersized unit never keeps up; an oversized one short cycles and wears out early.

How long does a split system heat pump last?

Around 15 years with proper installation and regular maintenance. Because a heat pump runs in both seasons rather than sitting idle half the year, twice-yearly servicing does more for its lifespan than it would on a cooling-only system.

Can a heat pump replace both my furnace and air conditioner?

Yes. That is one of the main reasons to fit one. A single system covers both seasons, which leaves one piece of outdoor equipment to maintain and removes the need for a gas connection entirely.
